Our Products

  • Mercury Module
  • Venus Module
  • Earth Module
  • Mars Module
  • Jupiter Module
  • Saturan Module
  • Uranus Module
  • Naptune Module

Mercury Module

Empowering You

Photovolatic
Inaya Nitya Sherya
3 - 200Watts 200 - 300Watts 300 –400Watts

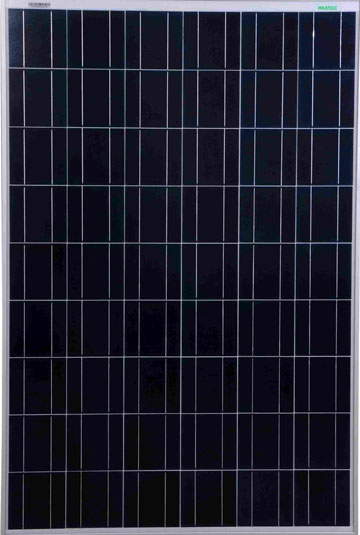

Vivinsun Inaya Series WS-3 to WS-200 watts

  • 36/72 cell Mono/Polycrystalline solar PV module
  • Superior Module Efficiency as per International Benchmarks – 15.22%
  • Corner crimped frames for higher strength
  • Excellent Performance in low light

Vivinsun Nitya Series WS-200 to WS-300 watts

  • 60/72/80 cells Mono/polycrystalline solar PV module
  • Superior Module Efficiency as per International Benchmarks – 16.27%
  • Positive Power Tolerance 0 / + 5W
  • Glass with Anti Reflective Coating (Improves light transmission)
  • Salt mist, Ammonia and Hail Resistant
  • Superior Module Efficiency as per International Benchmarks – 15.22%
  • IP 67 rated MC4 compatible connectors
  • Sand and Dust Storm Resistant

Vivinsun Sherya Series WS-300 to WS-400 watts

  • 72/80 cells Mono/polycrystalline solar PV module
  • Superior Module Efficiency as per International Benchmarks – 16.22%
  • Positive Power Tolerance 0 / + 5W
  • Glass with Anti Reflective Coating (Improves light transmission)
  • Higher anodized thickness for longer life
  • Superior Module Efficiency as per International Benchmarks – 15.22%
  • IP 67 / IP 68 vrated MC4 compatible connectors
  • Excellent Performance in low light
  • Sand and Dust Storm Resistant
Solar Rooftop Energy - Off Grid Solar Power Plants
Parasa Suprasa Amresha
1kw 2kw 5kw

Vivinsun Parasa Series 1kW

System Description

Total PV Module 1kw
PV module capapcity 250kwp
No of Panels 4 nos
Solar PCU 1kw
Batteries (150Ah X 12V) 2 Nos
Space required 50 sq feet
Supporting Structure GI Channel

With Complete Accessories Warranty: 5 years for Complete System. 25 years for Solar Panels. Delivery and Installation: 7 Days

Vivinsun Suprasa Series 2kW

System Description

Total PV Module 2kw
PV module capapcity 500kwp
No of Panels 8 nos
Solar PCU 2kw
Batteries (150Ah X 12V) 4 Nos
Space required 100 sq feet
Supporting Structure GI Channel

With Complete Accessories Warranty: 5 years for Complete System. 25 years for Solar Panels. Delivery and Installation: 7 Days

Vivinsun Amresha Series 5kW

System Description

Total PV Module 5kw
PV module capapcity 250kwp
No of Panels 20 nos
Solar PCU 5kw
Batteries (150Ah X 12V) 8 Nos
Space required 400 sq feet
Supporting Structure GI Channel

With Complete Accessories Warranty: 5 years for Complete System. 25 years for Solar Panels. Delivery and Installation: 7 Days

Solar Rooftop Energy - On Gride
Achyuta Ananta Dhanta
1kw 2kw 5kw

Vivinsun Achyuta Series 1kW

System Description

Total PV Module 1kw
PV module capapcity 250kwp
No of Panels 4 nos
Solar PCU 1kw
Space required 50 sq feet
Supporting Structure GI Channel

With Complete Accessories Warranty: 5 years for Complete System. 25 years for Solar Panels. Delivery and Installation: 7 Days

Vivinsun Ananta Series 2kW

System Description

Total PV Module 2kw
PV module capapcity 250kwp
No of Panels 4 nos
Solar PCU 2kw
Space required 100 sq feet
Supporting Structure GI Channel

With Complete Accessories Warranty: 5 years for Complete System. 25 years for Solar Panels. Delivery and Installation: 7 Days

Vivinsun Dhanta Series 5kW

System Description

Total PV Module 5kw
PV module capapcity 250kwp
No of Panels 20 nos
Solar PCU 2kw
Space required 400 sq feet
Supporting Structure GI Channel

With Complete Accessories Warranty: 5 years for Complete System. 25 years for Solar Panels. Delivery and Installation: 7 Days

Venus Module

Empowering U

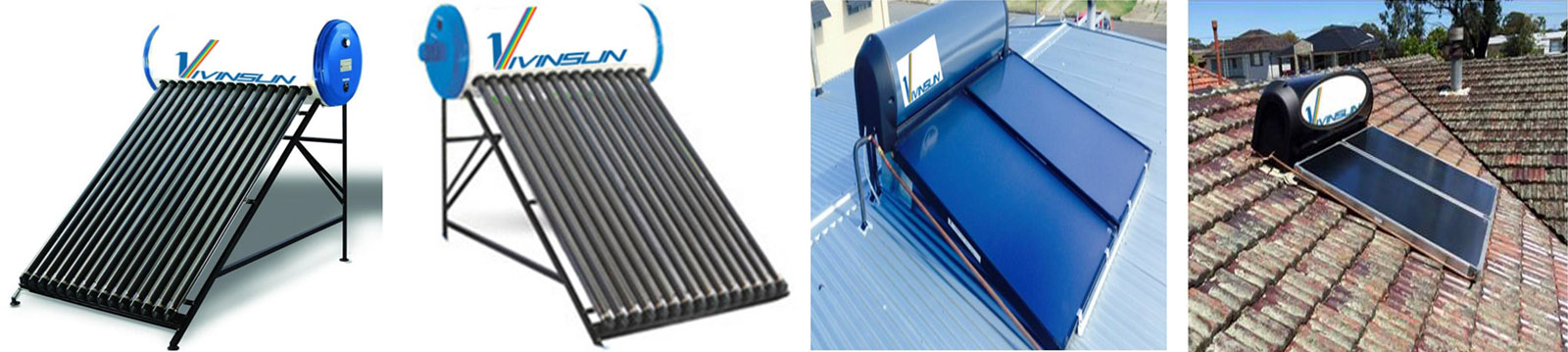

Solar Thermal
RooftopMounted Rooftail Mounted
Rava 100 Lite Viva 100Liters
Kava 200 Liters Suva 200Liters
Vishva 300 Liters Ujjva 300 Liters
ShravairH 500 Liters Eshava 500 Liters

Tank Specification – MNRE Specified Stantdars

PARTICULARS SPECIFICATION
Outer Tank Diameter 480 mm
Inner Tank Diameter 380 mm
Tank Volume 100 LPD, 200 LPD, 300 LPD, 500 LPD
Temperature 65 degree C to 85 degree C
Tank Insulation PUF 50mm (polyurethane foaming)
Inner tank material High-Grade Steel
Outer Tank Material Galvanized Power coated
Type of Fasteners Galvanized
Type of Grommets Silicon Rubbers

Tube Specification

CAPACITY 47 /37 mm 58/47 mm
100 LPD 12 10
200 LPD 24 20
300 LPD 35 30
500 LPD 55 50

Earth Module

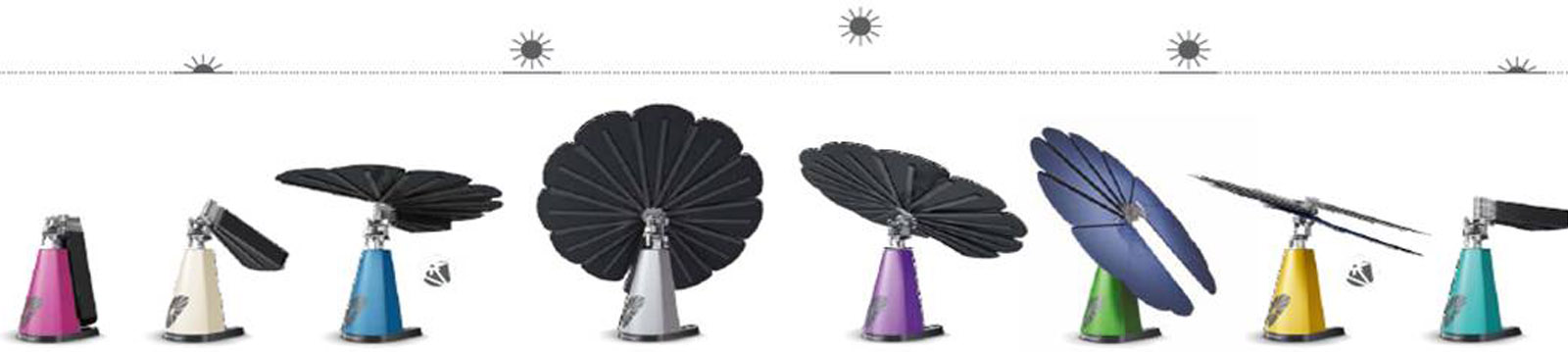

Smartflower the world’s first all-in-one solar system

Smart Flower
Aruna Series Karuna Series Tharuna Series
POP POP+ POP E-

Smart Flower – Wouldn’t it be wonderful if each of us could produce all clean energy we need right in our backyards? And wouldn’t it be cherry on top if the same photovoltaic system could simply be plug-&-play like any other normal home appliance? At smartflower, we have stopped asking such questions. Instead, we have answered them – with smartflower, the world’s first all-in-one solar system.

Manufacturing takes place in Austria using high quality materials so that our products produce electricity as long as possible. 25 years – we guarantee this is with our module performance guarantee.Thanks to its extraordinary construction and the perfectly synchronized components, the system delivers, on an average, approx. 6,200 kWh per year. Smartflower represents changing times. The size of the system alone is no longer the measure of all things. What counts is a fairly constant production rate during the course of the day in order to enable a more effective use of the produced energy. Smartflower achieves self-utilization of around 60% – a significant improvement over a comparable rooftop unit, which averages just around 20%. Now that is what we call smart!

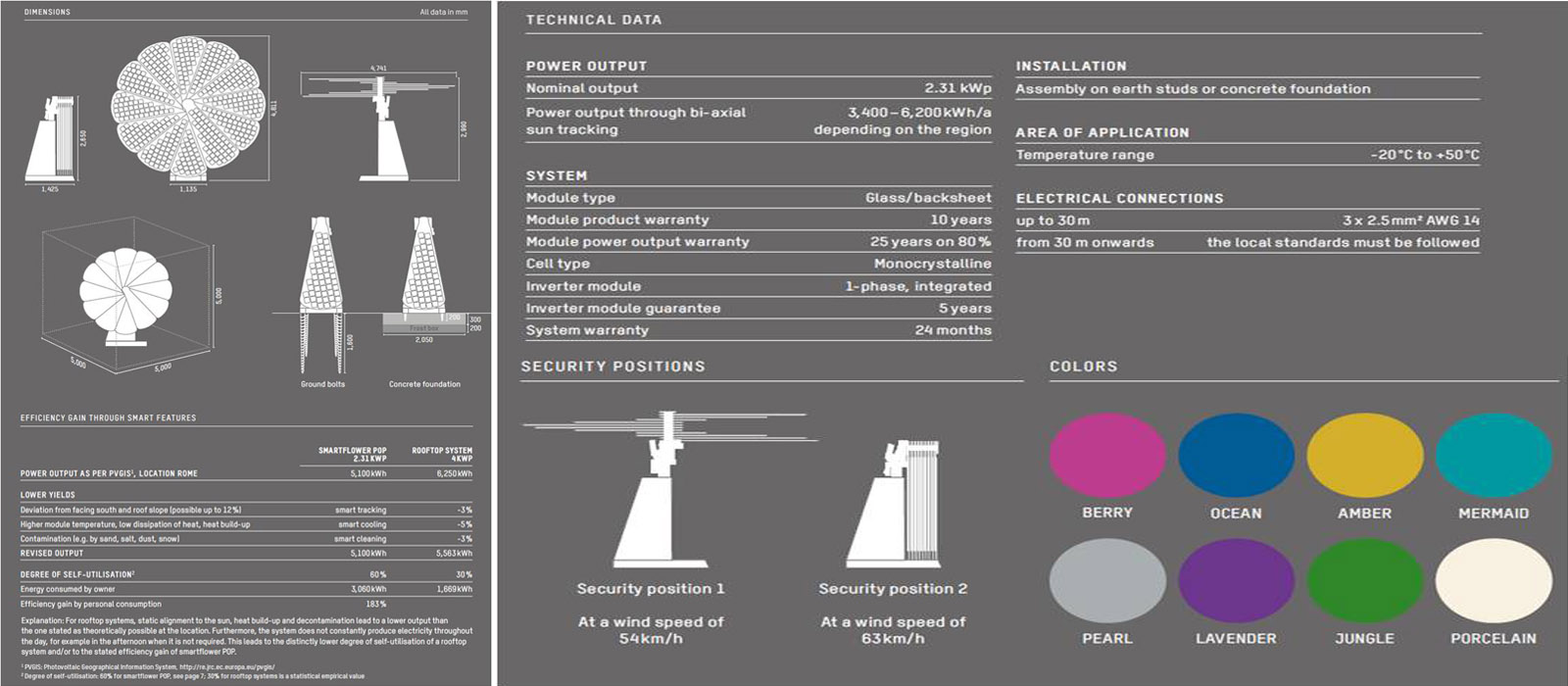

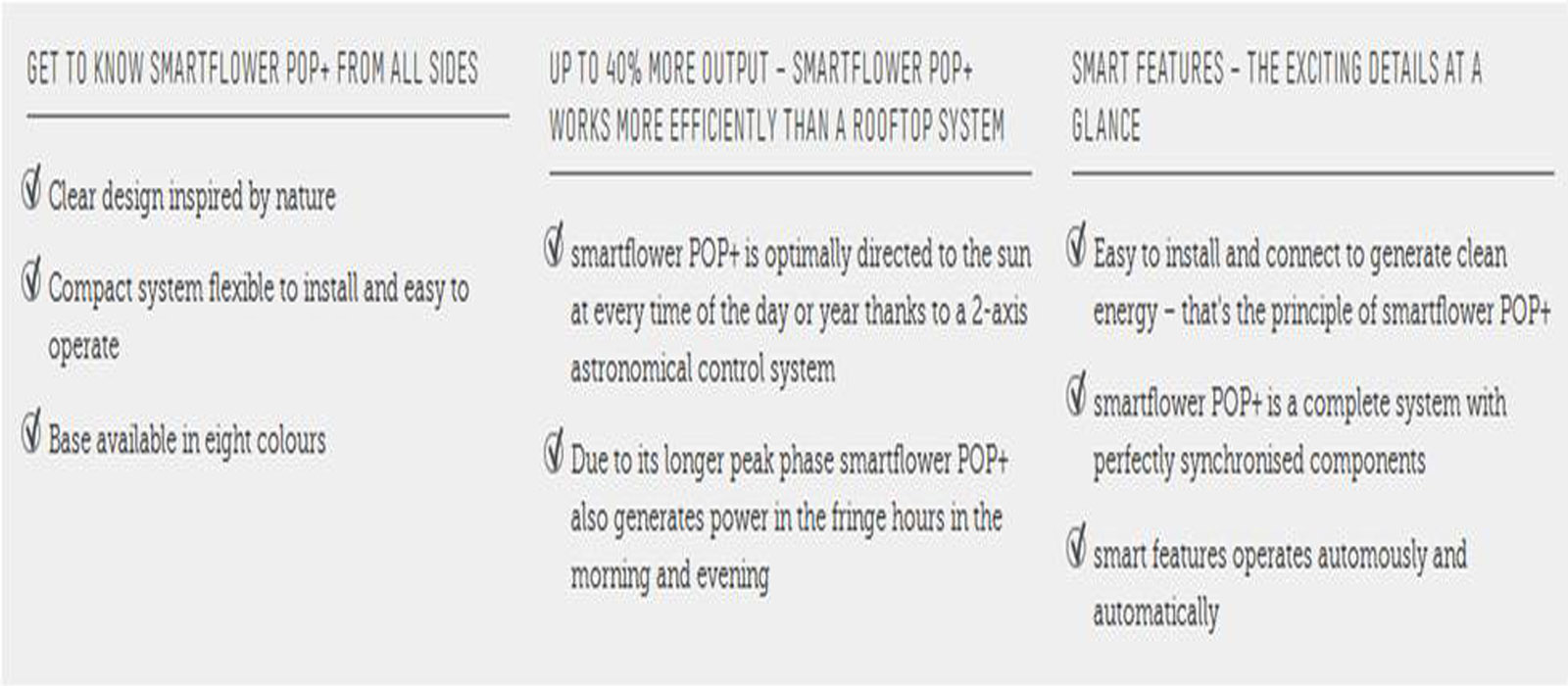

Aruna Series POP+ Simply set-up, connect & produce clean electricity - Solar Smart Flower - 2.3, 4.1,13.1KW

The Smartflower combines several intelligent functionalities in a single unit, so your energy can be used as efficiently as possible under the current regulations optimal use of your self generated energy is always the key issue. The smartflower directs your energy intelligently to where it belongs with its unique technology. The smartflower can decide itself whether to use self generated energy straight away store it in batteries or feed it into the grid this allow us to get maximum results from your PV system using the smartflower

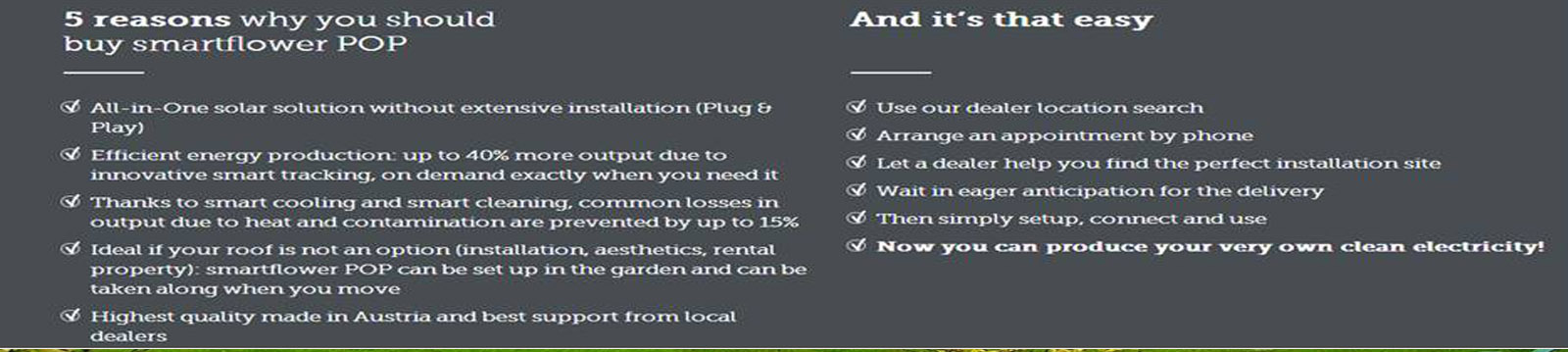

Smartflower POP is impressive, thanks to its fully automatic operation and perfect design. The optimum PV solution for all those who give importance to comfort and aesthetics. A prominent highlight of the all-in-one Plug & Play photovoltaic system is its metallic- colored base.

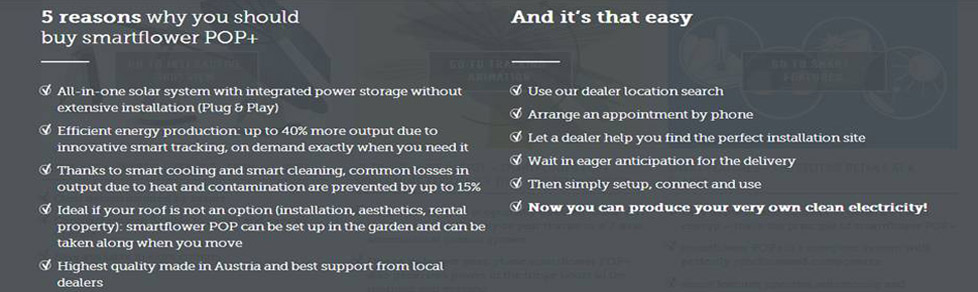

Karuna Series POP+ Simply set-up, connect & produce clean electricity - Solar Smart Flower - 2.3, 4.1,13.1KW

  • Clean solar power even after the sun goes down
  • Sophisticated technology & intelligent design, weatherproof,High-yielding & long lasting
  • On grid & off grid, in two storage sizes
  • Back up system for power cuts

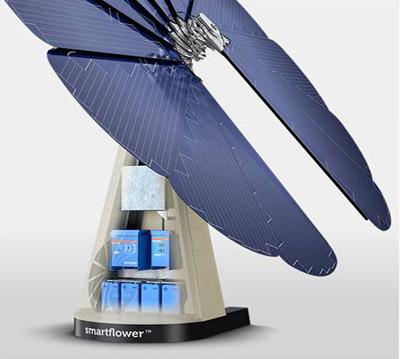

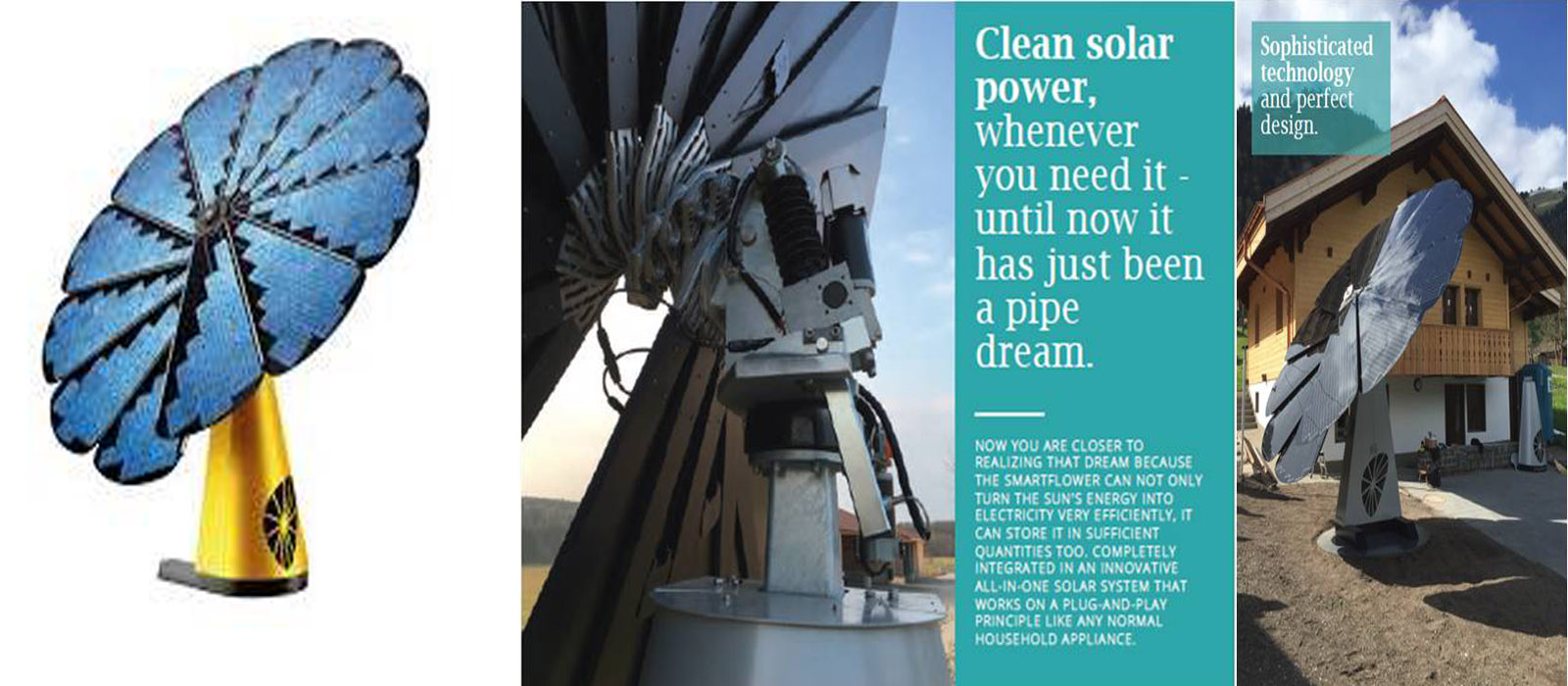

Enjoy the energy of the sun – Around the clock, almost independently of the grid

GENERATE POWER, STORE POWER LIVE AS YOU PLEASE

Clean solar power, whenever you need it – until now it has just been piped dream. Now you are closer than even to realizing that dream, because smartflower POP+ can not only turn the sun's energy into electricity very efficiently it can store it in sufficient quantities too.

Completely integrated in an innovative all in one solar system that works on a plug & the play principle like any normal household appliance. Either as an on grid version with 2.3 kWh of storage or fully independent as an off grid version with a storage capacity of 4.6 kWh. And the intelligent tracking function of the PV modules ensures that the system makes the most efficient use of the sun's energy at all times of the day and year. While the battery is continually recharged. So you can even enjoy cloudy days with a bright smile on your face.

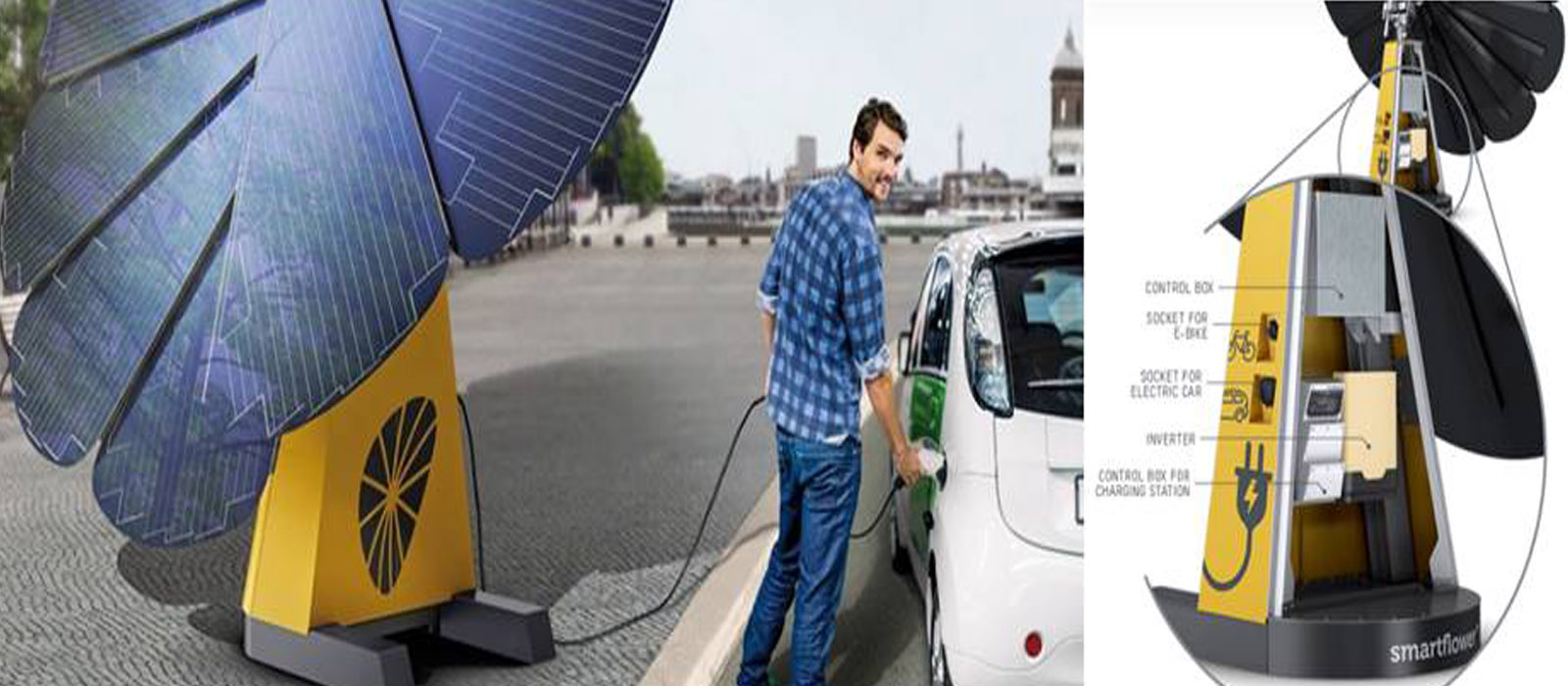

Tharuna Series POP E- Solar Smart Flower – 2.3, 4.1,13.1KW

  • Clean solar power for your own use or to feed into the gird
  • Charging station in attractive design
  • A clear commitment to sustainability & e-mobility
  • Back up system for power cuts

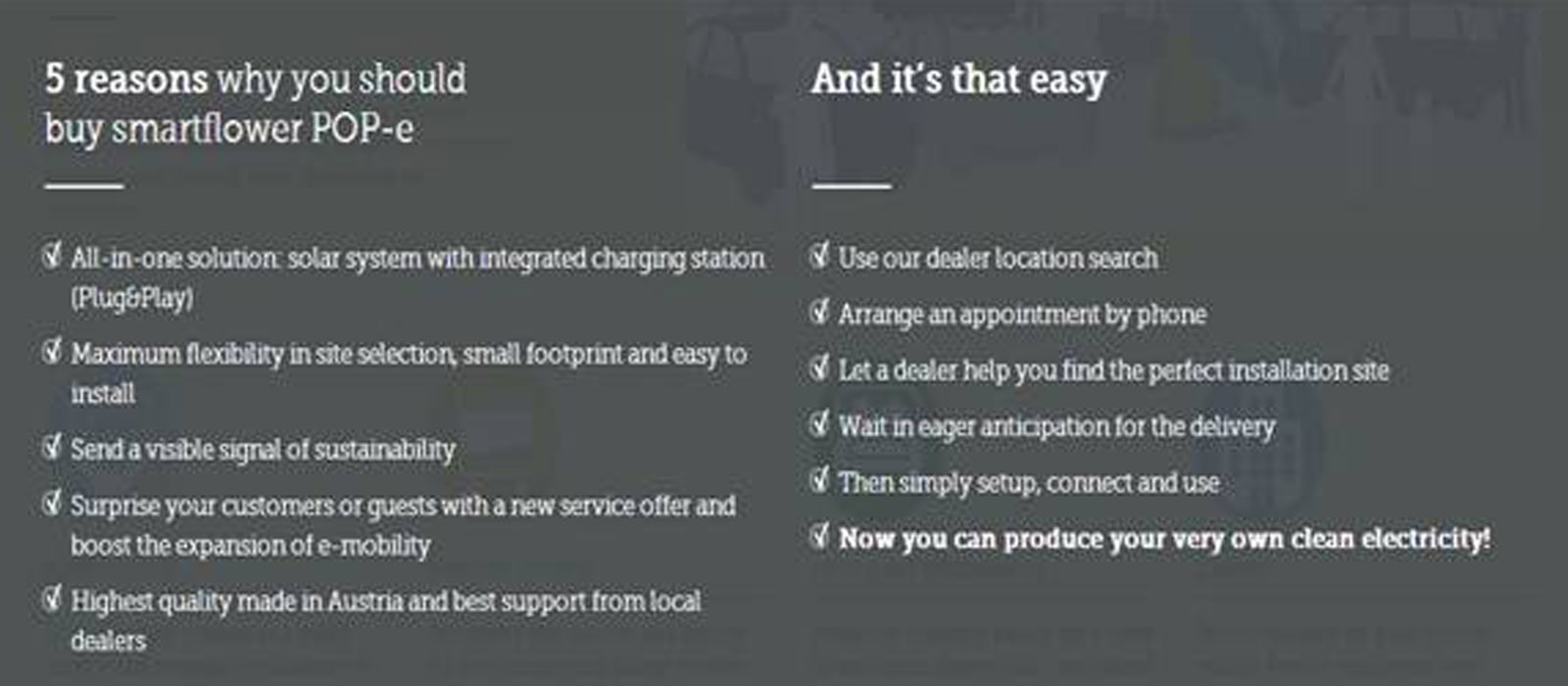

The worl’s first all in one solar system combined with a charging station for electric vehicles

To generate clean solar power & promote emission free mobility at the same time that is the idea behind smartflower POP-e. It combines the unique all in one solar system with a high performance charging station for electric vehicles. The electricity is either used directly or fed into the public grid, where it supports the integrated charging station, which can be used to charge both e-bikes & electric cars with a power supply of up to 22kW

Its unusual design makes POP-e a real eye catcher, which acts as a green ‘business card’ for companies. In public places, conventional fueling stations, shopping centers or company premises – Smartflower POP-e is an innovative service concept for residents, customers & employees & sends a highly visible & credible signal that sustainability is being put into practice here

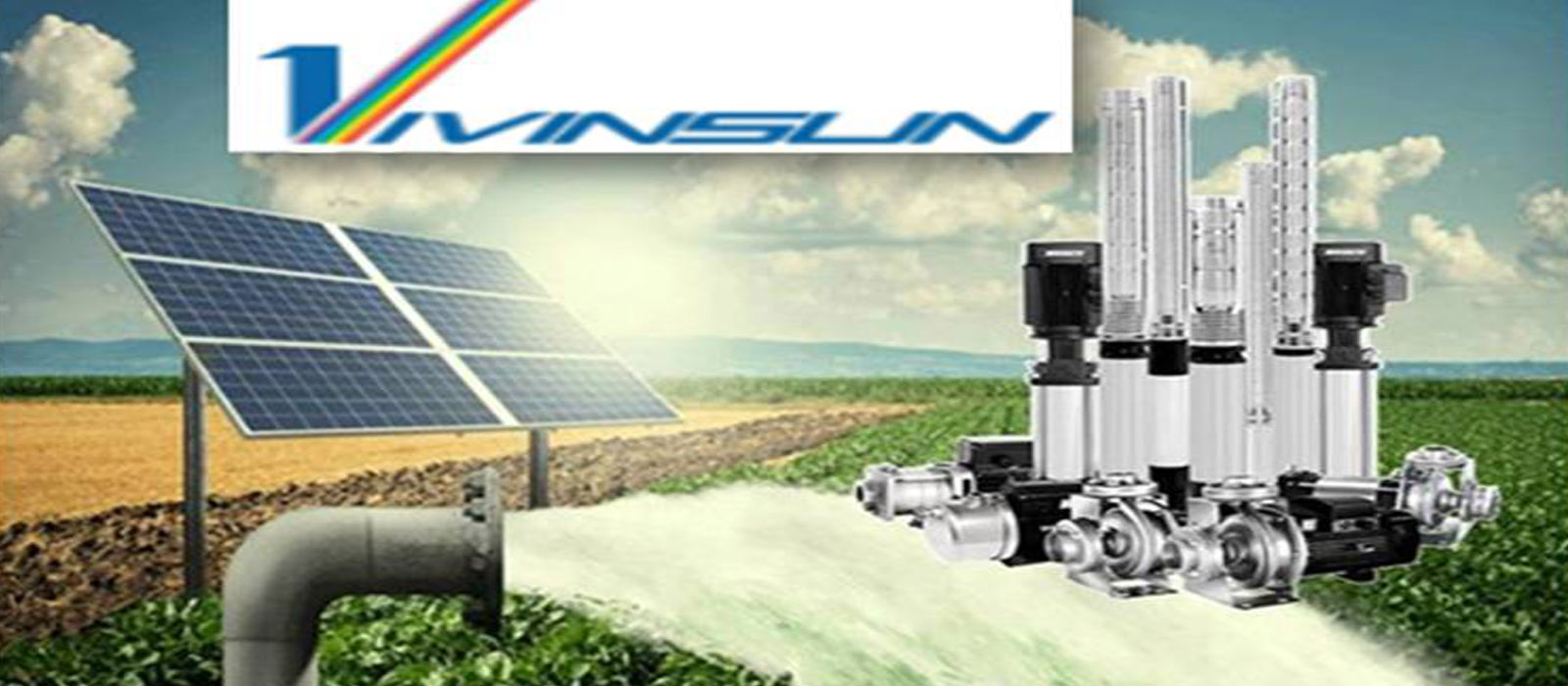

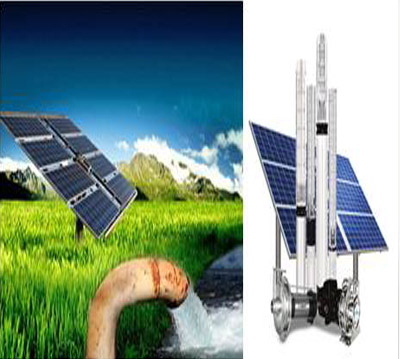

Vivinsun Solar Surface & Submersible Solar Water Pump

The best features united for great performance in Vivinsun Solar Water Pumps. Vivinsun offers DC submersible & surface pumps supporting for varied applications like field irrigation, drawing water from borewells & sumps.

Vivinsun Surya Series 1HP DC Surface

  • PV array of 900Wp capacity
  • 81,000 Liters per day from 10 meters head
  • Shut-off total dynamic head - 12 meters

Vivinsun Jaya Series 2HP DC Surface

  • PV array of 900Wp capacity
  • 81,000 Liters per day from 10 meters head
  • Shut-off total dynamic head - 12 meters

Vivinsun Achintya Series 3HP DC Surface

  • PV array of 1800Wp capacity
  • 1,62,000 Liters per day from 10 meters head
  • Shut-off total dynamic head - 15 meters

Vivinsun Vashya Series 5HP DC Surface

  • PV array of 4800Wp capacity
  • 2,15,000 Liters per day from 10 meters head
  • Shut-off total dynamic head -30 meters

Vivinsun Indraya Series 1HP DC Submersible

  • PV array of 1200Wp capacity
  • 38,400 Liters per day from 30 meters head
  • Shut-off total dynamic head -45 meters

Vivinsun Indraya Series 2HP DC Submersible

  • PV array of 1800Wp capacity
  • 57,600 Liters per day from 30 meters head
  • Shut-off total dynamic head -45 meters

Vivinsun Indraya Series 3HP DC Submersible

  • PV array of 3000Wp capacity
  • 57,600 Liters per day from 25 meters head
  • Shut-off total dynamic head -75 meters

Vivinsun Indraya Series 5HP DC Submersible

  • PV array of 4800Wp capacity
  • 91,200 Liters per day from 25 meters head
  • Shut-off total dynamic head -70 meters

Mars Module

Future Innovative Projects

Smart Flower

  • Vivinsun SmartFlower DC – Aditya Series
  • Vivinsun Renewable DC SmartHome – Surya Series

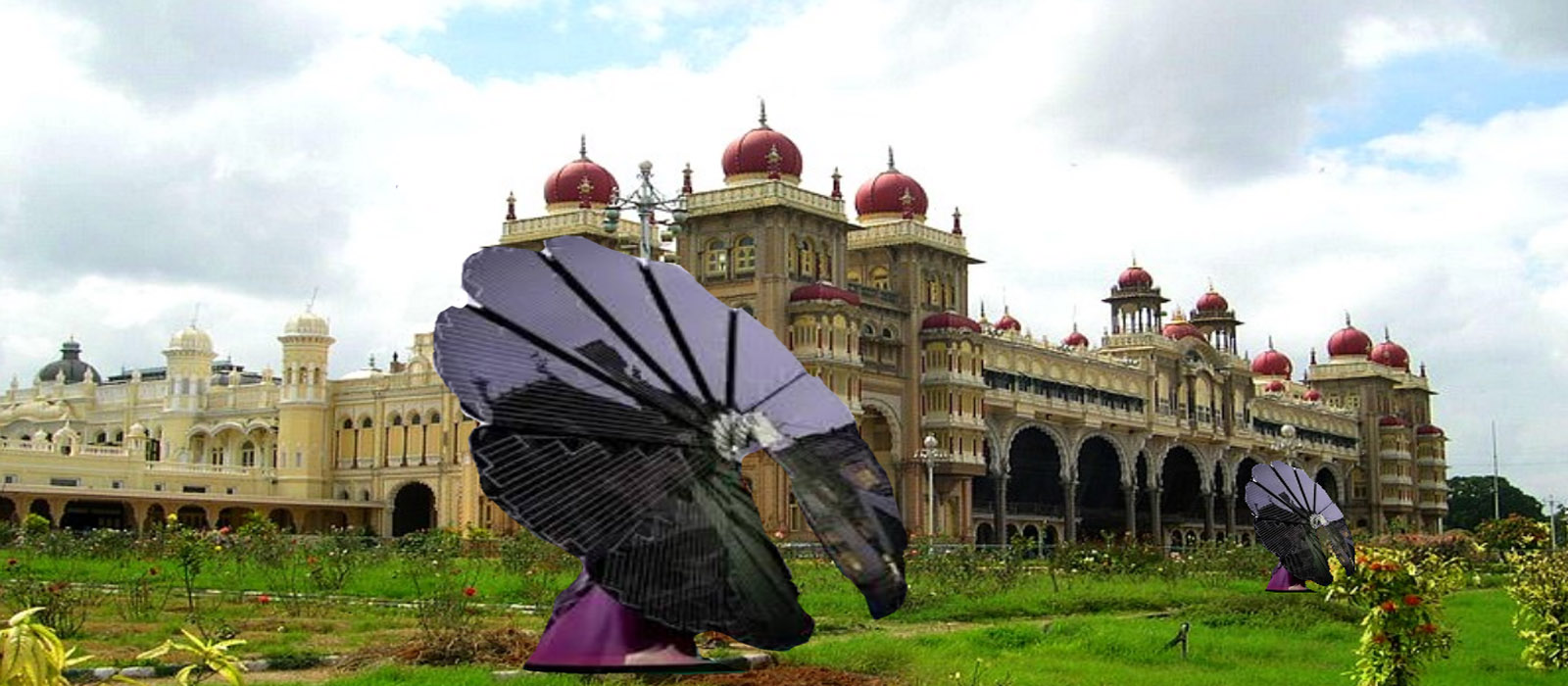

Vivinsun DC Smart Flower 1kW, 2kW & 5kW – Vivinsun vision to empower the nation with a compact product with optimum cost affordable for all – Vivinsun Smart Flower DC will prove as a perfect resolution.

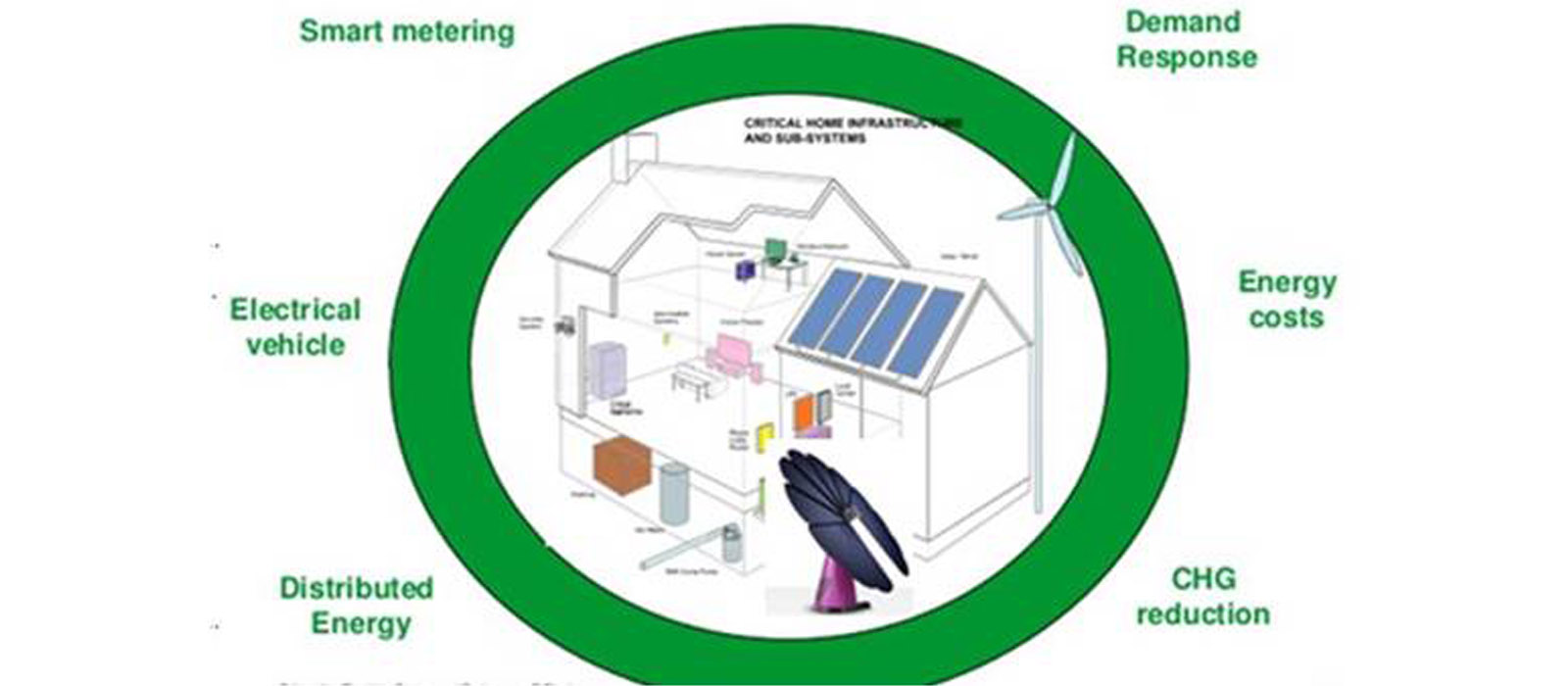

Vivinsun Renewable SmartHome – Vivinsun Renewable Smarthome is called Hosa Mani(New home) which will be equipped with all available renewable feature in a home such as solar, wind, geothermal with rainwater harvest & waste recycling facility & everything will be controlled within the touch of handheld touch sensitivity smart device, which enables the complete control of Power & Electronic system management inside home.

Jupiter Module

Future Innovative Projects

  • Vivinsun Renewable Smart Ecovalley – Baskara Series

Vivinsun Renewable Smart Ecovalley - Vivinsun Renewable Smart Ecovalley will be developed by Vivinsun, which features the complete area with a predefined set of occupants, facilitating the area with renewable features & valley will be enabled with self governed system with digitally enabled facilities for all humanitarian needs.

Saturan Module

Future Innovative Projects

  • Vivinsun Sunflower Concept – Ahaskara Series
  • Vivinsun Synthesize Solar Fuels – Sharva Series

Vivinsun Sunflower Concept – Ahaskara Series

We are introducing a new solar concept which is going to bring solar energy to even the remotest place on earth; The Sunflower will provide clean & affordable power energy, Heating in winter, Refrigeration & Air-conditioning in summer, Purified water at any time & electricity. We call this as poly-generation which means fulfillment of multiple needs at the same time with respect to any location. It all starts from concentration; in common solar technology which captures the radiation on flat surfaces this necessarily requires the need large areas. In order make the needs the solution available was to concentrate the incoming solar radiations by means of simple mirrors on much smaller ultra high efficiency photovoltaic cells which are used in satellite, with the concentration factor of 2000 times which is twice as much as similar concentration technology.

Vivinsun Synthesize Solar Fuels – Sharva Series

The future prospective by the year 2030 of our Sunflower can be called Synthesize Solar Fuels, Starting from only air & sun the system will be able to synthesize fuels such as gasoline.

Concept: Photosynthesis in order how plants will prepare food sourcing ingredients like carbon-di-oxide & water are sourced from air, Similar concept with Synthesize solar fuels which source water & carbon-di-oxide from air and are feed to a special reactor called concentrated solar radiation from which can reach the condition needed to split the mixture into 8 products that can readily transform into gasoline via a standard chemical processes. With this we achieve a fundamental process, where we can transfer the incoming radiation into a form into a liquid fuel which can use by the engines of common vehicles without any change.

Uranus Module

Future Innovative Projects

Vivinsun Renewable SmartEcocity – Ujjaval Series

Vivinsun Renewable SmartEcocity – Vivinsun Renewable SmartEcocity will be a predefined set anthologies of numerous smart area equipped with renewable features, recycle management system & city will be enabled with self governed system with digitally enabled facilities for all humanitarian needs.

Neptune Module

Future Innovative Projects

Vivinsun Renewable SmartEcovillage – Jayin Series

Vivinsun Renewable Smart Eco Village – Vivisun Renewable Smart Eco Village will be basically providing all the urban facilities to rural villages. Developing a model village by connecting through electronic, economic, knowledge & empowering the village through renewable sources. Deploying the concept to all villages & making all rural village to Renewable SmartEcoVillage.
